The new eyePlate-S

Small external diameter

Tube is designed to occupy minimal space in the anterior chamber. Entry can be performed with a 25G needle.

Ideal inner diameter

Tube lumen is dimensioned to efficiently stent the tube with a 5-0 suture.

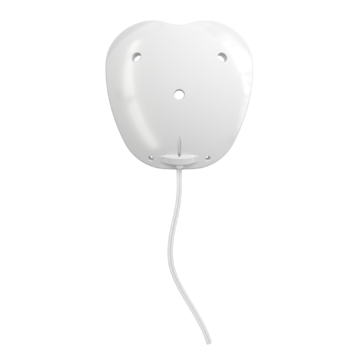

Unique plate design

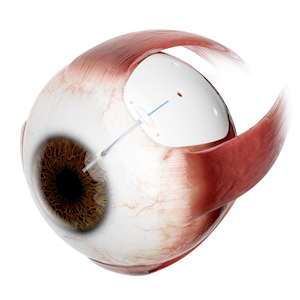

The endplate is designed to maximize drainage area while avoiding the need for insertion under the muscles.

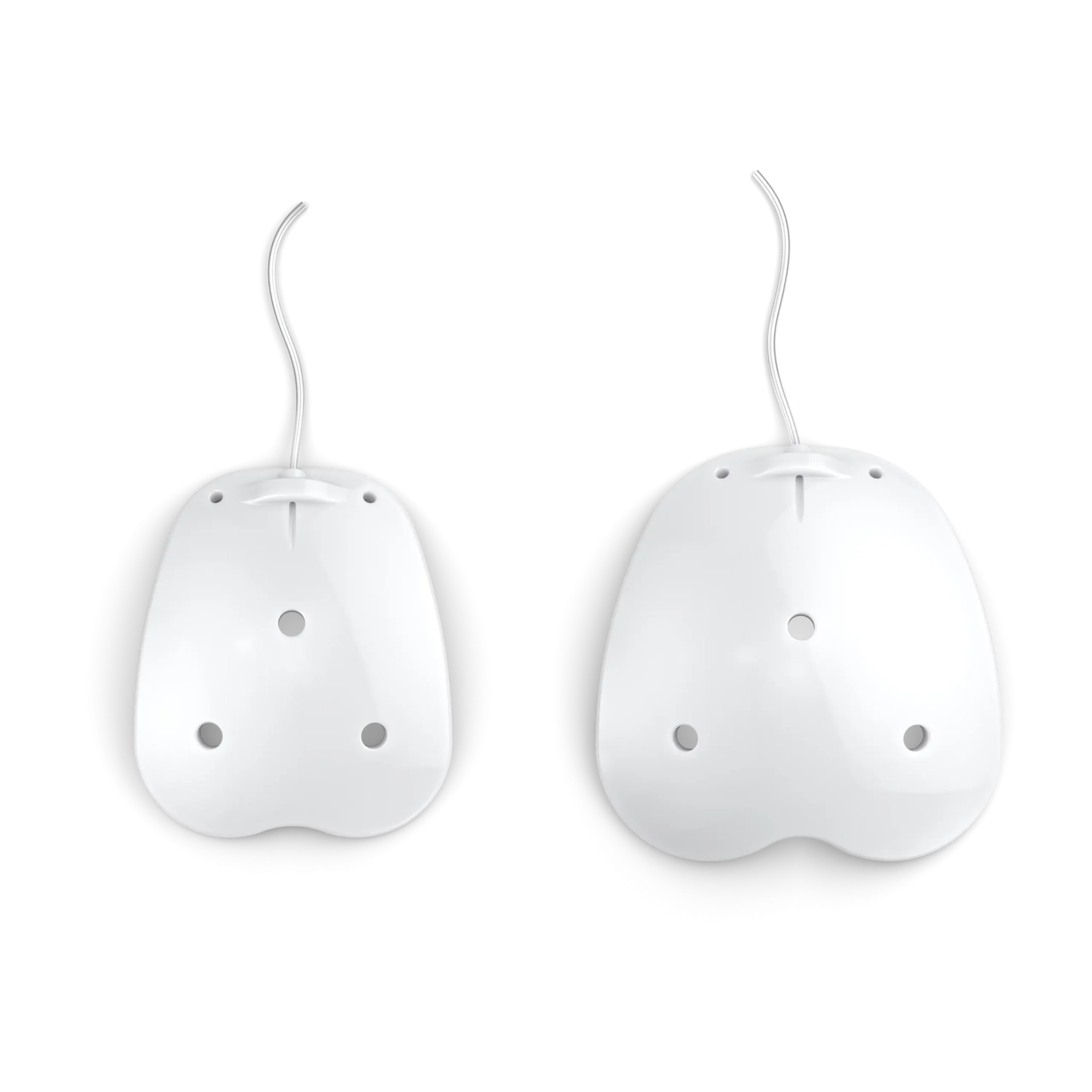

Available in two sizes

The eyePlate-S is available in 200mm2 and 300mm2 plate sizes to better accommodate varying surgeon preferences.

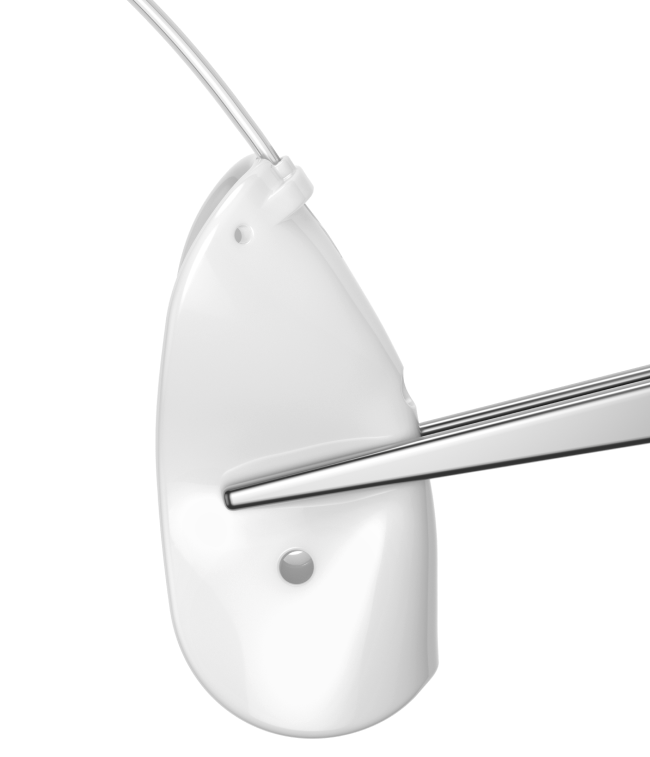

Thin and flexible

The silicone plate is only 0.8mm thick. It is very flexible and can be folded, enabling a smoother and less-invasive insertion.

c4vnJoKA 1

eyePlate-S models and specifications

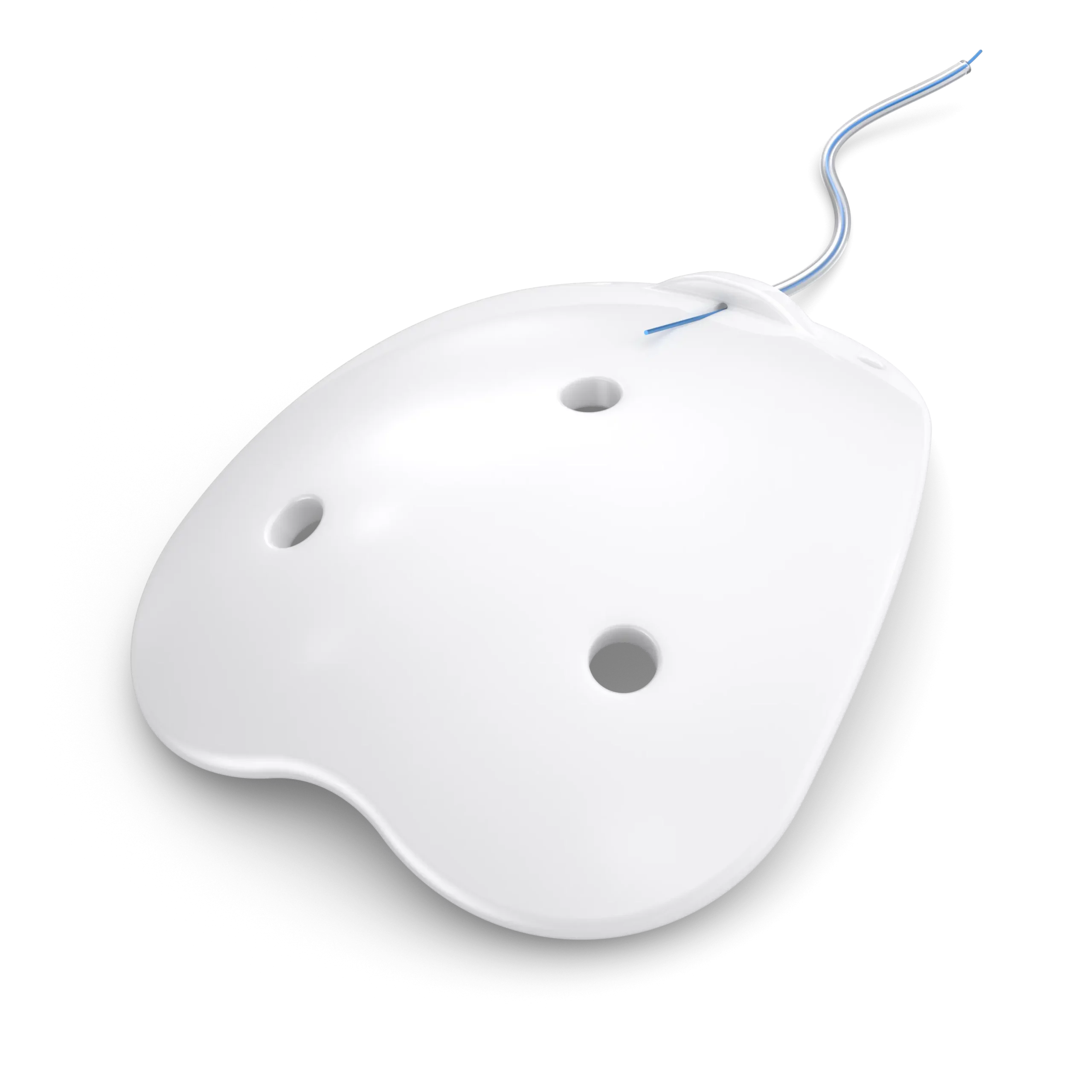

eyeplate-200s

Plate

eyePlate-200s
Plate surface area: 200 mm²
Plate width: 16.8 mm
Plate length: 14.5 mm
Plate thickness: 0.80 mm
eyePlate-200s
Plate surface area: 200 mm²
Plate width: 16.8 mm
Plate length: 14.5 mm
Plate thickness: 0.80 mm
Tube
External diameter: 0.47 mm
Internal diameter: 0.18 mm
Tube
External diameter: 0.47 mm
Internal diameter: 0.18 mm

eyeplate-300s

Plate

eyePlate-300s
Plate surface area: 300 mm²
Plate width: 18.9 mm
Plate length: 18.5 mm
Plate thickness: 0.80 mm
Tube
External diameter: 0.47 mm
Internal diameter: 0.18 mm
